Highcharts Column Range Chart

In the previous chapters, we learned how to setup highcharts library and how to create a chart with required configurations using highcharts library in our webpage. Now, we will learn how to create a column range chart using highcharts library with examples.

Highcharts Column Range Chart Example

Following is the example of creating a column range chart by setting the required column chart properties using highcharts library.



<html>

<head>

    <title>Highcharts Column Range Chart</title>

    <script src="https://code.jquery.com/jquery-3.4.1.min.js"></script>

    <script src="https://code.highcharts.com/highcharts.js"></script>

    <script src="https://code.highcharts.com/highcharts-more.js"></script>

    <script src="https://code.highcharts.com/modules/exporting.js"></script>

    <script src="https://code.highcharts.com/modules/export-data.js"></script>

    <script type="text/javascript">

        $(function() {

            Highcharts.chart('container', {

                chart: {

                    type: 'columnrange',

                    inverted: true

                },

                title: {

                    text: 'Temperature variation by month'

                },

                subtitle: {

                    text: 'Observed in Vik i Sogn, Norway, 2017'

                },

                xAxis: {

                    categories: ['Jan', 'Feb', 'Mar', 'Apr', 'May', 'Jun',

                        'Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec'

                    ]

                },

                yAxis: {

                    title: {

                        text: 'Temperature ( °C )'

                    }

                },

                tooltip: {

                    valueSuffix: '°C'

                },

                plotOptions: {

                    columnrange: {

                        dataLabels: {

                            enabled: true,

                            format: '{y}°C'

                        }

                    }

                },

                legend: {

                    enabled: false

                },

                series: [{

                    name: 'Temperatures',

                    data: [

                        [-9.9, 10.3],

                        [-8.6, 8.5],

                        [-10.2, 11.8],

                        [-1.7, 12.2],

                        [-0.6, 23.1],

                        [3.7, 25.4],

                        [6.0, 26.2],

                        [6.7, 21.4],

                        [3.5, 19.5],

                        [-1.3, 16.0],

                        [-8.7, 9.4],

                        [-9.0, 8.6]

                    ]

                }]

            });

        });

    </script>

</head>

<body>

    <div id="container" style="width: 100%; height: 400px;"> </div>

</body>

</html>

If you observe the above example, we created a column range chart using highcharts library with required properties.

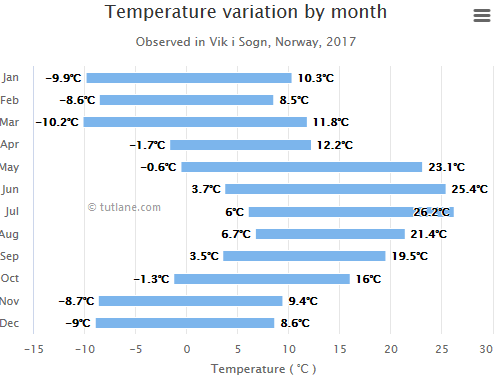

When we execute the above highcharts example, we will get the result like as shown below.



Highcharts Column Range Chart Example Result



This is how we can create a column range chart using highcharts library with required properties.
